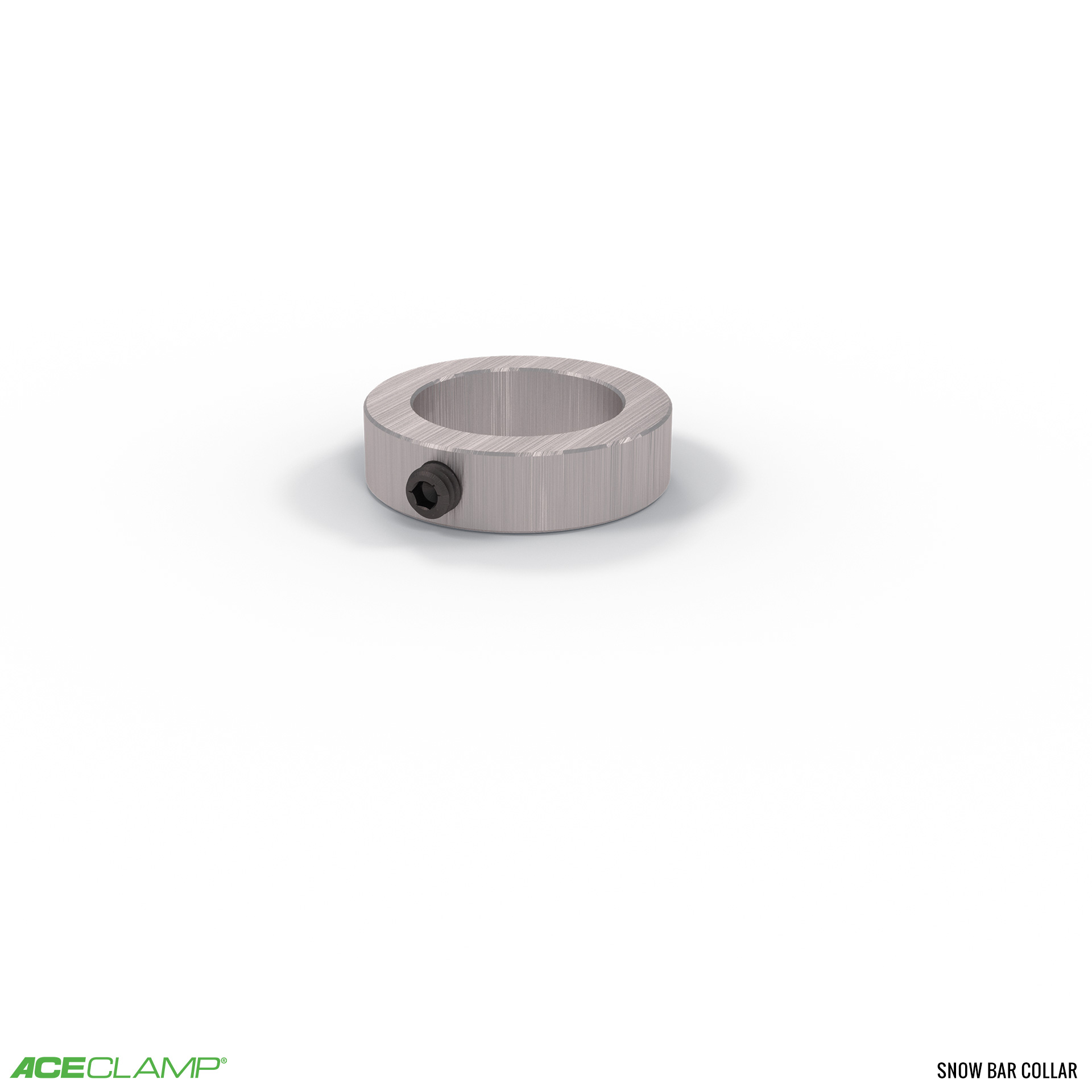

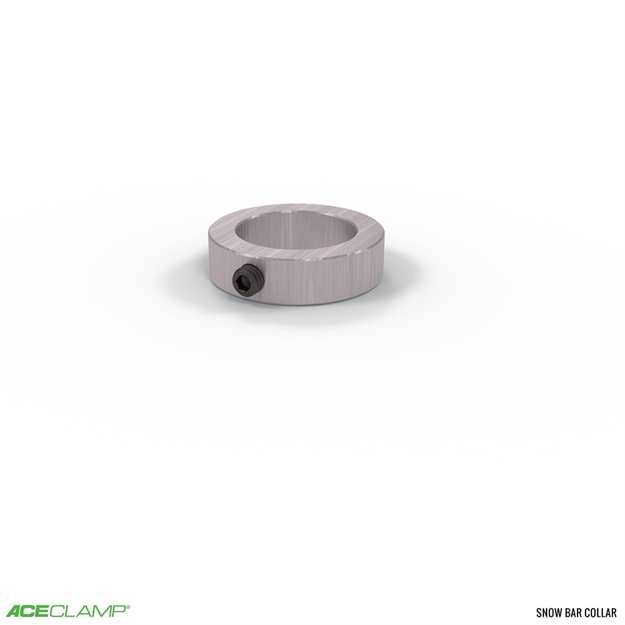

Snow Bar Collar

Part#: BAR-COLLAR

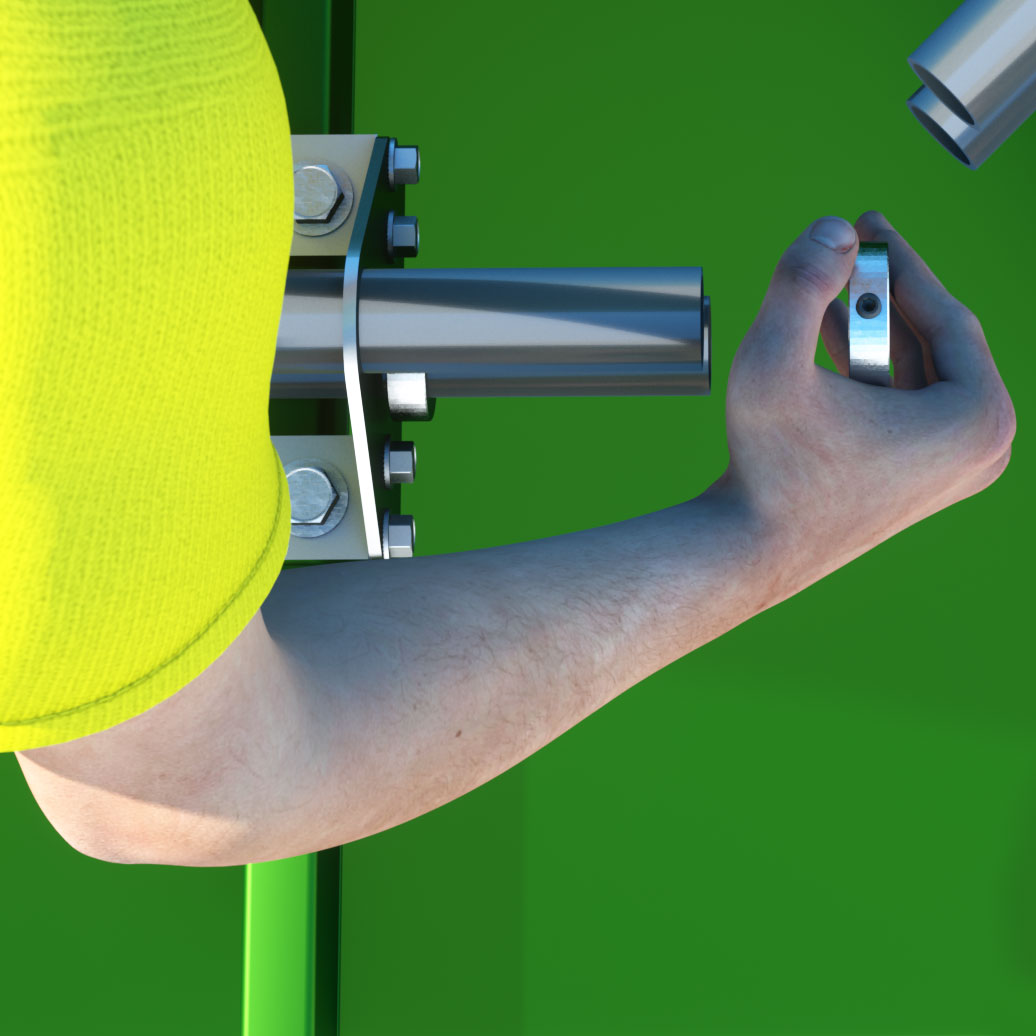

The Role of Snow Bar Collars in Snow Retention Systems

For roofing contractors, the functionality and reliability of snow retention systems are critical. AceClamp snow bar collars are a key component, providing essential support and stability. These collars slide over the ends of snow bars and secure them to the brackets with heavy-duty allen screws. This secure connection is vital for maintaining the stability and effectiveness of the snow retention system.

Heavy-Duty Construction

Snow bar collars are designed to withstand the harshest weather conditions. Made from high-quality aircraft-grade aluminum for robust durability.

Durability: The heavy-duty construction of resists corrosion and wear, extending the lifespan of the snow retention system.
Strength: The collars ensure a tight and secure fit, preventing the snow bars from shifting or loosening over time.
