Railless Solar Racking Kit for Double Lock Standing Seam Metal Roofs

Designed for:

compatibile with single-lock seamed SSMR roofs

compatibile with double lock seamed SSMR roofs

compatibile with trapezoidal seamed SSMR roofs

Documentation

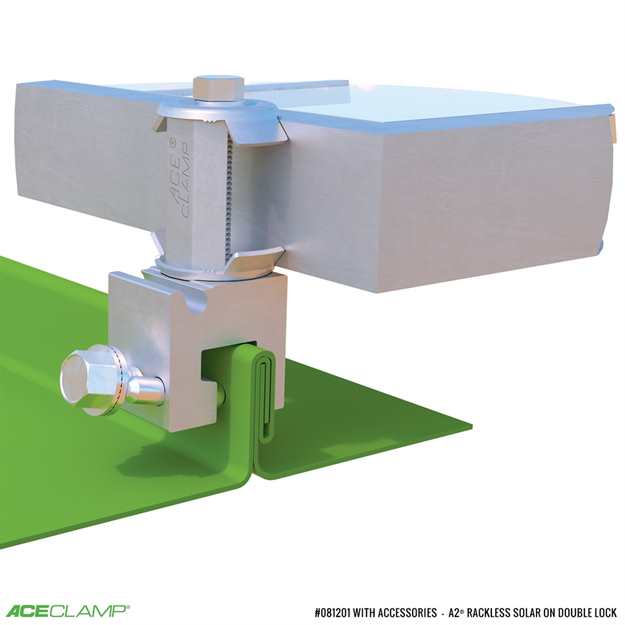

Railless Solar Racking Kit for Double Lock Standing Seam Metal Roofs

Part#: 081201

This AceClamp railless PV mounting kit has been specially designed for a precise fit primarily on double-lock standing seam metal roofs. The solar mounting system clamps on to double-lock SSMR using AceClamp's patented push-pin A2® non-penetrating metal roof clamps. This railless solar racking system provides significant labor savings by reducing installation times thanks to its pre-assembled component groups and rail-less design.

Installation Video

Pre-assembled clamp allows for easy installation
Patented, non-penetrating push-pin design does not damage the panel
Rigorous 3rd party testing ensures quality & performance
Compatible with arrays of 36-52mm in depth
Custom End Supports are compatible with any PV panel thickness.
Clamps sold separately

Manufactured in aircraft quality aluminum, brass or stainless steel

aceclamp metal roof snow guards advantages

AceClamp kits eliminate the need for set screws, require no re-torquing, and arrive fully-assembled and ready-to-install

US Patent#: 8,505,864

Clamp / Mount Utilized

Related Kits

Components

Customer Stories

Railless Solar Racking: Efficient, Secure, and Durable

Fast installing, cost-saving solar mounting for GES Solar

A2® Non-Penetrating Solar Mounting Clamp

A fully assembled A2® Clamp with allowance to attach PV Kit.

UL 2703 Standard for Mounting Systems, Mounting Devices, Clamping/Retention Devices, and Ground Lugs for Use with Flat-Plate Photovoltaic Modules and Panels
UL 467 Grounding and Bonding Equipment
Pre-assembled clamp allows for a quick and easy installation
Non-penetrating sliding pin design does not damage the panel
High wind-load resistance
Available for one, two or three-hole brackets (2-6 inches in height)
Engineered for snow retention systems on single, double or snap-lock SSMR
Aircraft quality aluminum
All stainless-steel hardware
Installs in half the time of competitive products*

(clamp sold separately)

Railless Solar Racking Kit for Snap Lock Short

Railless Solar Racking Kit for Trapezoidal Standing Seam Metal Roofs - A2®

Railless Solar Racking Kit for Trapezoidal Opt 2

Railless Solar Racking Kit for Trapezoidal

Railless Solar Racking Kit for Bulb Style

Railless Solar Racking Kit for T-Panel

Railless Solar Racking Kit for Snap Lock

Railless Solar Racking Kit for Single Lock

Railless solar racking kit is a big hit with manufacturer

For more information about this product, please call AceClamp® at 860-406-5793 or send us an inquiry. To learn more about PMC Industries, Inc.’s patents and trademarks, it may be found here: Patent Notice. *Based on typical contractor experience.
