L-Foot Solar Panel Mounting Kit for Snap Lock Standing Seam Metal Roofs

Designed for:

compatibile with snap lock 1.5 inch seamed SSMR roofs or greater

Fits 1.5" to 1.75" Seams

Documentation

Solar L Foot Kit Cut Sheet

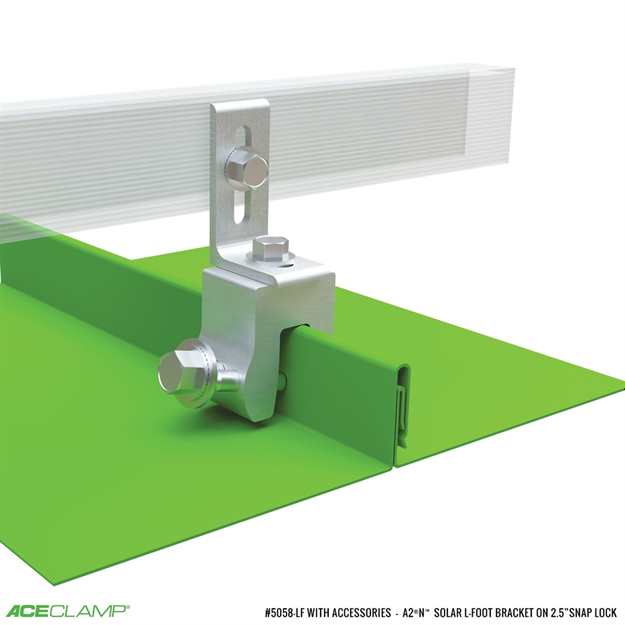

L-Foot Solar Panel Mounting Kit for Snap Lock Standing Seam Metal Roofs

Part#: 5058-LF

This AceClamp l-foot PV mounting kit has been specially designed for a precise fit primarily on tall profile snap-lock style standing seam metal roofs. The solar mounting system clamps on to 1.5" to 1.75" snap-lock SSMR using AceClamp's patented push-pin A2®N™ non-penetrating metal roof clamps. This l-foot solar mount provides significant labor savings by reducing installation times thanks to its pre-assembled clamps and universal l-foot.

Universal L-Foot is compatible with most solar applications
Provides unobstructed access to mounting clamps
Adjustable height & width adapts to a variety of panels/clamps
Serrated hex nut locks tight and prevents back out
Common 3/8 bolt, as used on our AceClamp®
Assembly includes L-Foot and Bolts. Clamp is sold separately.
Rigorous 3rd party testing ensures quality & performance

Manufactured in aircraft quality aluminum, brass or stainless steel

aceclamp metal roof snow guards advantages

AceClamp kits eliminate the need for set screws, require no re-torquing, and arrive fully-assembled and ready-to-install

US Patent#: 8,505,864

Clamp / Mount Utilized

Related Kits

Components

Customer Stories

Solar L-Foot

A2®N™ Non-Penetrating Solar Mounting Clamp

Designed for fast installation on 1.0” to 1.5” high nail base profiles and some selected snap-lock panel styles. This product is a larger version of our flagship A2® product. The product comes pre-drilled for attaching our Color Snap® or Rail type snow retention system. It’s compatible with our patented Solar-Kit or L-Foot for attaching directly to a racking system. All AceClamps are fully-assembled at the factory, ready to install out of the box.

UL 2703 Standard for Mounting Systems, Mounting Devices, Clamping/Retention Devices, and Ground Lugs for Use with Flat-Plate Photovoltaic Modules and Panels
UL 467 Grounding and Bonding Equipment
Pre-assembled clamp allows for easy installation
Non-penetrating sliding pin design does not damage the panel
Available for one, two or three-hole brackets
Engineered for 1.5” snap-lock SSMR seams
Aircraft quality aluminum
All stainless-steel hardware
Installs in half the time of competitive products*

(clamp sold separately)

For more information about this product, please call AceClamp® at 860-406-5793 or send us an inquiry. To learn more about PMC Industries, Inc.’s patents and trademarks, it may be found here: Patent Notice. *Based on typical contractor experience.
