L-Foot Solar Panel Mounting Kit for Single Lock Standing Seam Metal Roofs

Designed for:

compatibile with single-lock seamed SSMR roofs

compatibile with double lock seamed SSMR roofs

compatibile with trapezoidal seamed SSMR roofs

Documentation

Solar L Foot Kit Cut Sheet

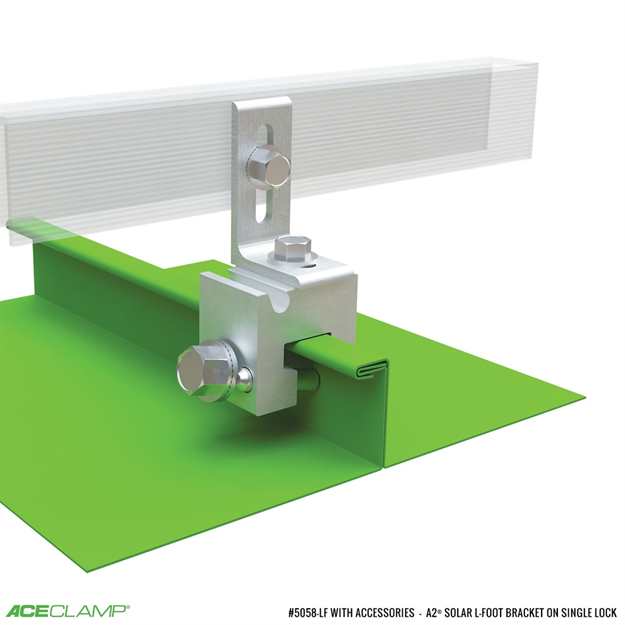

L-Foot Solar Panel Mounting Kit for Single Lock Standing Seam Metal Roofs

Part#: 5058-LF

This AceClamp l-foot PV mounting kit has been specially designed for a precise fit primarily on single-lock standing seam metal roofs. The solar mounting system clamps on to single-lock SSMR using This l-foot solar mount provides significant labor savings by reducing installation times thanks to its pre-assembled clamps and universal l-foot.

Universal L-Foot is compatible with most solar applications
Provides unobstructed access to mounting clamps
Adjustable height & width adapts to a variety of panels/clamps
Serrated hex nut locks tight and prevents back out
Common 3/8 bolt, as used on our AceClamp®
Assembly includes L-Foot and Bolts. Clamp is sold separately.
Rigorous 3rd party testing ensures quality & performance

Manufactured in aircraft quality aluminum, brass or stainless steel

aceclamp metal roof snow guards advantages

AceClamp kits eliminate the need for set screws, require no re-torquing, and arrive fully-assembled and ready-to-install

US Patent#: 8,505,864

Clamp / Mount Utilized

Related Kits

Components

Customer Stories

Solar L-Foot

A2® Non-Penetrating Solar Mounting Clamp

A fully assembled A2® Clamp with allowance to attach PV Kit.

UL 2703 Standard for Mounting Systems, Mounting Devices, Clamping/Retention Devices, and Ground Lugs for Use with Flat-Plate Photovoltaic Modules and Panels
UL 467 Grounding and Bonding Equipment
Pre-assembled clamp allows for a quick and easy installation
Non-penetrating sliding pin design does not damage the panel
High wind-load resistance
Available for one, two or three-hole brackets (2-6 inches in height)
Engineered for snow retention systems on single, double or snap-lock SSMR
Aircraft quality aluminum
All stainless-steel hardware
Installs in half the time of competitive products*

(clamp sold separately)

L-Foot Solar Panel Mounting Kit for Trapezoidal Standing Seam Metal Roofs - A2®

L-Foot Solar Panel Mounting Kit for Trapezoidal Opt 2

L-Foot Solar Panel Mounting Kit for Double Lock

For more information about this product, please call AceClamp® at 860-406-5793 or send us an inquiry. To learn more about PMC Industries, Inc.’s patents and trademarks, it may be found here: Patent Notice. *Based on typical contractor experience.
