A2®N™ Non-Penetrating Solar Mounting Clamp

Designed for:

compatibile with snap lock 1.5 inch seamed SSMR roofs or greater

Fits 1.5" to 1.75" Seams

Documentation

Clamp
Specs

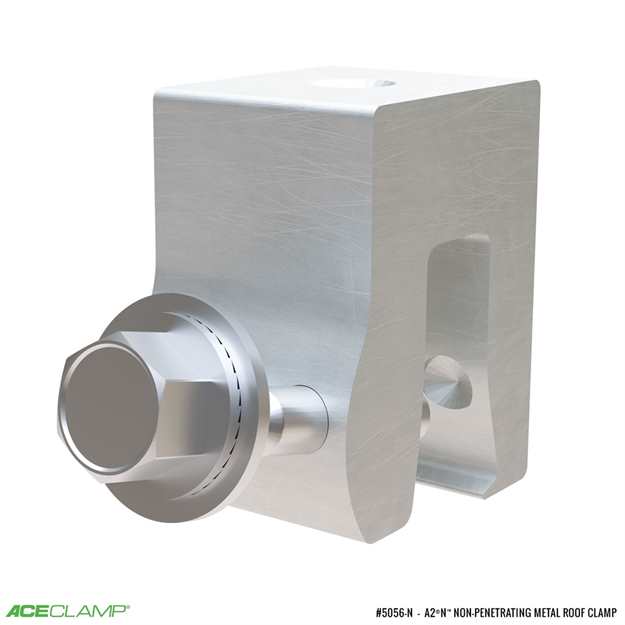

A2®N™ Non-Penetrating Solar Mounting Clamp

Part#: 5056-N

Designed for fast installation on 1.0” to 1.5” high nail base profiles and some selected snap-lock panel styles. This product is a larger version of our flagship A2® product.

The product comes pre-drilled for attaching our Color Snap® or Rail type snow retention system. It’s compatible with our patented Solar-Kit or L-Foot for attaching directly to a racking system. All AceClamps are fully-assembled at the factory, ready to install out of the box.

UL 2703 Standard for Mounting Systems, Mounting Devices, Clamping/Retention Devices, and Ground Lugs for Use with Flat-Plate Photovoltaic Modules and Panels
UL 467 Grounding and Bonding Equipment
Pre-assembled clamp allows for easy installation
Non-penetrating sliding pin design does not damage the panel
Available for one, two or three-hole brackets
Engineered for 1.5” snap-lock SSMR seams
Aircraft quality aluminum
All stainless-steel hardware
Installs in half the time of competitive products*

US Patent#: 9903532

Clamp / Mount Utilized

Related Kits

Components

Customer Stories

Solar Snap® Rail

Solar Snap® Rail End Cap

Solar Snap® Mid Clamp

Solar Snap® End Clamp

Solar Connector Plate

Solar L-Foot

Burndy Grounding Lug

Solar Snap® Solar Racking System for Snap-Lock

L-Foot Solar Panel Mounting Kit for Snap Lock

Railless Solar Racking Kit for Snap Lock

For more information about this product, please call AceClamp® at 860-406-5793 or send us an inquiry. To learn more about PMC Industries, Inc.’s patents and trademarks, it may be found here: Patent Notice. *Based on typical contractor experience.
