Solar Snap® Solar Racking System for Trapezoidal Standing Seam Metal Roofs - A2®

Designed for:

compatibile with single-lock seamed SSMR roofs

compatibile with double lock seamed SSMR roofs

compatibile with trapezoidal seamed SSMR roofs

Documentation

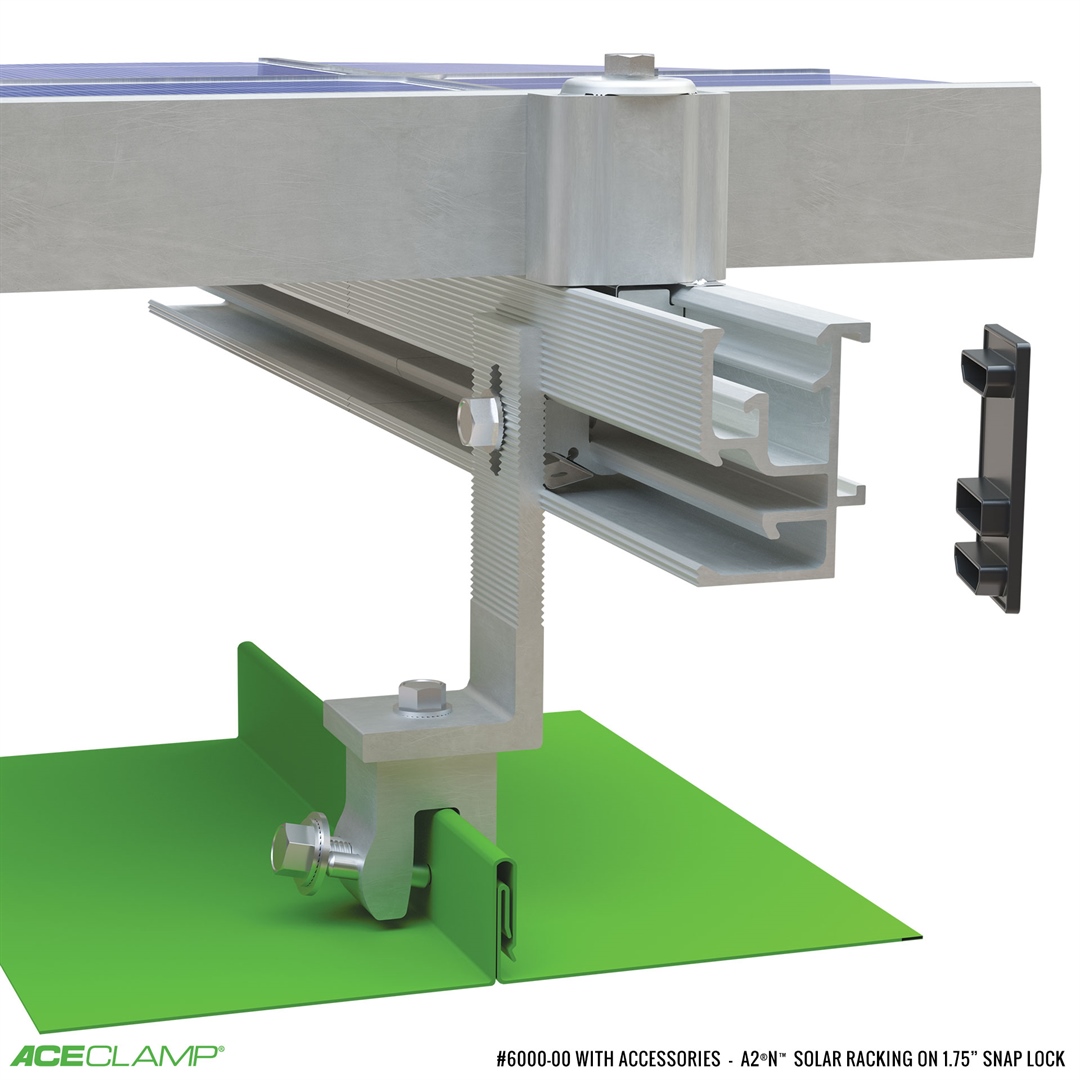

Solar Snap® Solar Racking System for Trapezoidal Standing Seam Metal Roofs - A2®

Part#: 6000-00

This Solar Snap solar racking system has been specially designed for a precise fit primarily on standing seam metal roofs. The solar mounting system clamps on to trapezoidal SSMR using AceClamp's patented push-pin A2® non-penetrating metal roof clamps. This solar racking system provides significant labor savings by reducing installation times thanks to its pre-assembled component groups and snap-in features.

Snap fit provides fast & easy installation
One of the strongest racking systems on the market
Rigorous 3rd party testing ensures quality & performance
Adjustable height and width fits multiple applications
Serrated hex nut locks tight and prevents back out
Sold in 168” (14’) lengths. Custom sizes available upon request
Mounting brackets included!
Tested to UL 2703 and to withstand up to Cat 5 winds (contact engineering for specific roof application)
Anodizing upon request
Assembly includes Snap Anchor, Rail, Connector Plate and End Cap. L-Foot assembly, Grounding Stud and Clamps sold separately.

Manufactured in aircraft quality aluminum, brass or stainless steel

aceclamp metal roof snow guards advantages

AceClamp kits eliminate the need for set screws, require no re-torquing, and arrive fully-assembled and ready-to-install

US Patent#: 10,469,022

Clamp / Mount Utilized

Related Kits

Components

Customer Stories

Cambridge Solar Selects Solar Racking for Efficient Photovoltaic Installations

Solar Snap® Rail

Solar Snap® Rail End Cap

Solar Snap® Mid Clamp

Solar Snap® End Clamp

Solar Connector Plate

Solar L-Foot

Burndy Grounding Lug

Solar Snap® Solar Racking System for Trapezoidal

Solar Snap® Solar Racking System for Bulb Style

Solar Snap® Solar Racking System for T-Panel

Solar Snap® Solar Racking System for Snap-Lock Short

Solar Snap® Solar Racking System for Snap-Lock

Solar Snap® Solar Racking System for Double-Lock

Solar Snap® Solar Racking System for Single-Lock

A2® Non-Penetrating Solar Mounting Clamp

A fully assembled A2® Clamp with allowance to attach PV Kit.

UL 2703 Standard for Mounting Systems, Mounting Devices, Clamping/Retention Devices, and Ground Lugs for Use with Flat-Plate Photovoltaic Modules and Panels
UL 467 Grounding and Bonding Equipment
Pre-assembled clamp allows for a quick and easy installation
Non-penetrating sliding pin design does not damage the panel
High wind-load resistance
Available for one, two or three-hole brackets (2-6 inches in height)
Engineered for snow retention systems on single, double or snap-lock SSMR
Aircraft quality aluminum
All stainless-steel hardware
Installs in half the time of competitive products*

(clamp sold separately)

For more information about this product, please call AceClamp® at 860-406-5793 or send us an inquiry. To learn more about PMC Industries, Inc.’s patents and trademarks, it may be found here: Patent Notice. *Based on typical contractor experience.
