L-Foot Solar Panel Mounting Kit for T-Panel Standing Seam Metal Roofs

Designed for:

compatibile with t-panel seamed SSMR roofs

Documentation

Solar L Foot Kit Cut Sheet

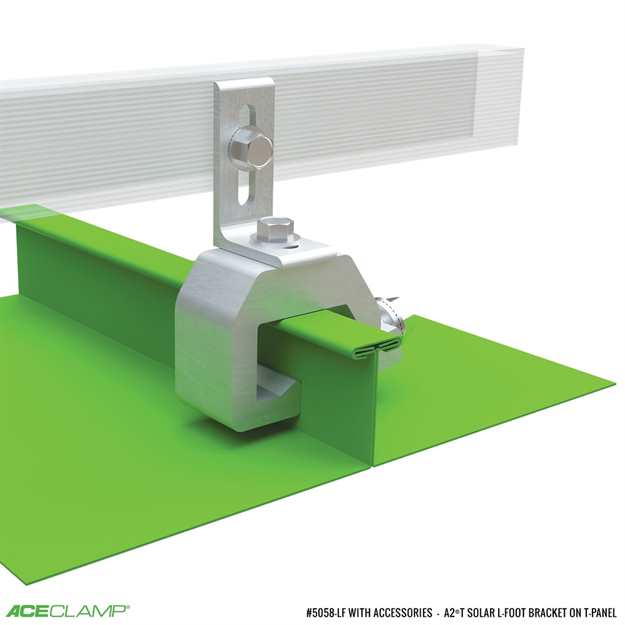

L-Foot Solar Panel Mounting Kit for T-Panel Standing Seam Metal Roofs

Part#: 5058-LF

This AceClamp l-foot PV mounting kit has been specially designed for a precise fit primarily on t-panel style standing seam metal roofs. The solar mounting system clamps on to t-panel SSMR using AceClamp's patented push-pin A2®T non-penetrating metal roof clamps. This l-foot solar mount provides significant labor savings by reducing installation times thanks to its pre-assembled clamps and universal l-foot.

Universal L-Foot is compatible with most solar applications
Provides unobstructed access to mounting clamps
Adjustable height & width adapts to a variety of panels/clamps
Serrated hex nut locks tight and prevents back out
Common 3/8 bolt, as used on our AceClamp®
Assembly includes L-Foot and Bolts. Clamp is sold separately.
Rigorous 3rd party testing ensures quality & performance

Manufactured in aircraft quality aluminum, brass or stainless steel

aceclamp metal roof snow guards advantages

AceClamp kits eliminate the need for set screws, require no re-torquing, and arrive fully-assembled and ready-to-install

US Patent#: 8,505,864

Clamp / Mount Utilized

Related Kits

Components

Customer Stories

Solar L-Foot

A2®T Non-Penetrating Solar Mounting Clamp

Modeled after the ML™ and offers side versus top securing, making it more versatile for solar applications
Pre-assembled clamp allows for a quick and easy installation
Non-penetrating sliding pin design does not damage the panel
High wind-load resistance
Available for two or three-hole brackets (2-6 inches in height)
Engineered for bulb-style and T-panel seams
Aircraft quality aluminum
All stainless-steel hardware
Installs in half the time of competitive products*

(clamp sold separately)

For more information about this product, please call AceClamp® at 860-406-5793 or send us an inquiry. To learn more about PMC Industries, Inc.’s patents and trademarks, it may be found here: Patent Notice. *Based on typical contractor experience.
