3 Bar Variable Angle Snow Guards for Single Lock Standing Seam Metal Roofs

Designed for:

compatibile with single-lock seamed SSMR roofs

compatibile with double lock seamed SSMR roofs

compatibile with trapezoidal seamed SSMR roofs

Documentation

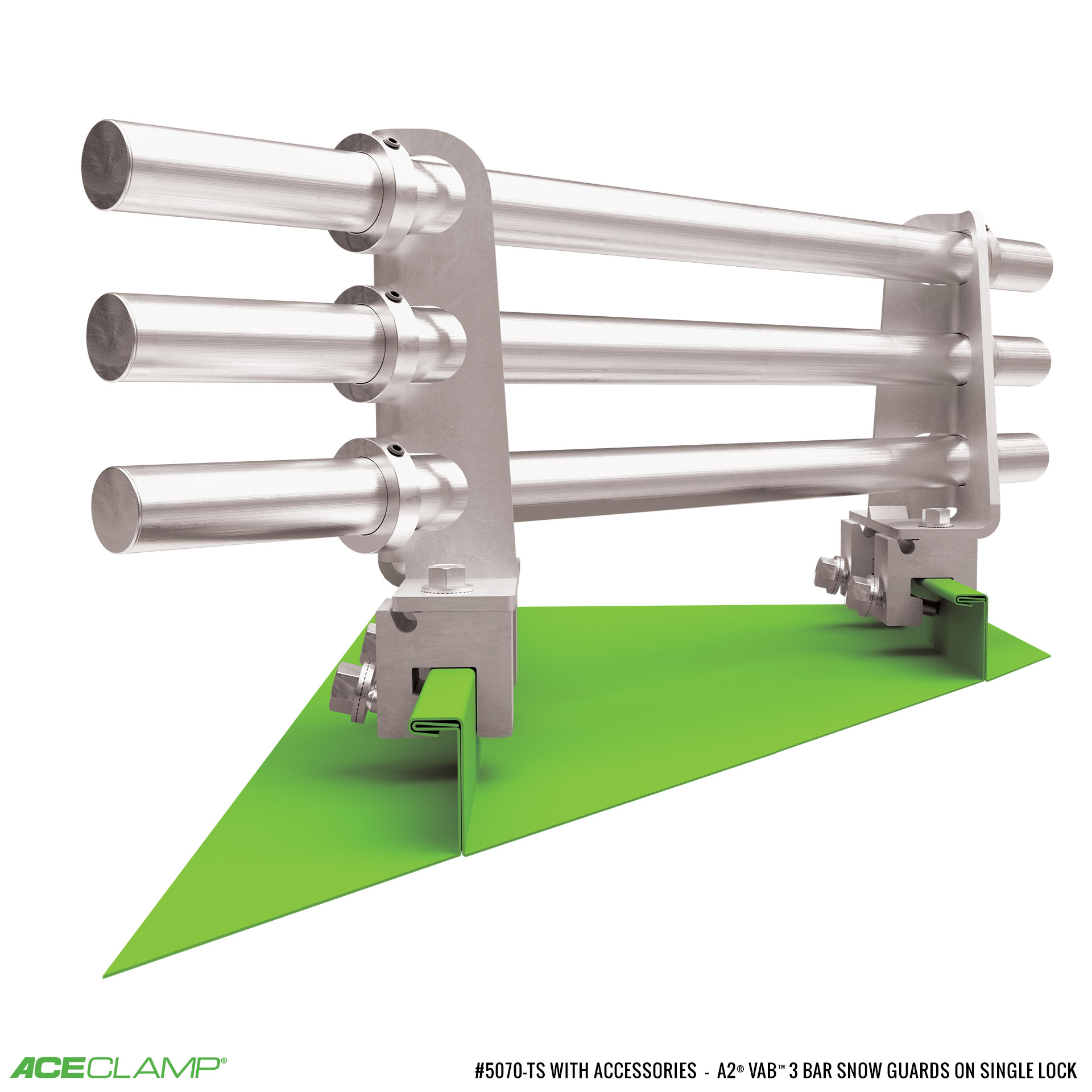

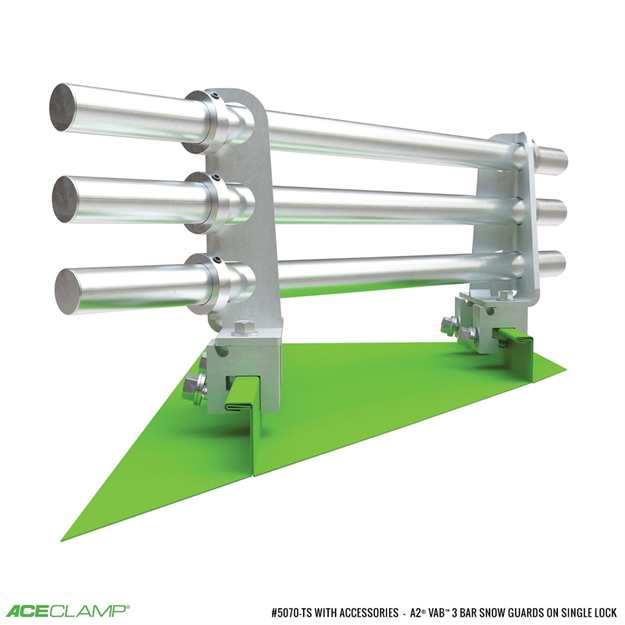

3 Bar Variable Angle Snow Guards for Single Lock Standing Seam Metal Roofs

Part#: 5070-TS-3L or 3R

This variable-angle three snow bar system has been specially designed for a precise fit primarily on single-lock standing seam metal roofs. The snow retention system clamps on to single-lock SSMR using AceClamp's patented push-pin A2® non-penetrating metal roof clamps. These snow guards provide significant labor savings by reducing installation times thanks to our pre-assembled clamp-on bracket. Complete your installation with either 5" or 7" ice-flags to prevent snow from sliding under your bars.

A flexible system for non-standard installations

Easily installs to any angle to contain drifting snow
Can also be added on gable & hip roofs where secondary & tertiary snow loads exist
Can provide a snow defense for any angles other than 90 degrees
Eliminates the need for multiple snow retention rows, parallel to the eve or ridge
Assembly includes necessary Clamp and Bracket. Collars, Bars and Ice Flags sold separately.

Manufactured in aircraft quality aluminum, brass or stainless steel

aceclamp metal roof snow guards advantages

AceClamp kits eliminate the need for set screws, require no re-torquing, and arrive fully-assembled and ready-to-install

US Patent#: D866305, D866306

Clamp / Mount Utilized

Related Kits

Components

Customer Stories

Snow Bar Tube Cap

Ice Flags, 7 Inch

Ice Flags, 5 Inch

Snow Bars

Hendrick Hudson Free Library utilizes VAB™ snow retention

Snow Bar Collars

Bar Connector

A2® Non-Penetrating Metal Roof Clamp

Pre-assembled clamp allows for a quick and easy installation
Patented, non-penetrating push-pin design does not damage the panel
High wind-load resistance
Available for one, two or three-hole brackets (2-6 inches in height)
Engineered for snow retention systems on single, double or snap-lock SSMR
Aircraft quality aluminum
All stainless-steel hardware
Installs in half the time of competitive products*

(clamp sold separately)
